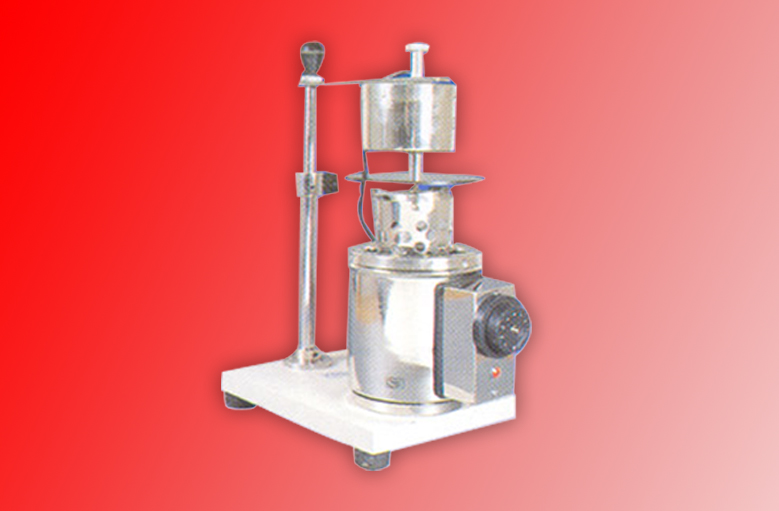

Yorco Bone Decalcifier Digital
Latest Model Designed on International Pattern

Efficient for use in histology for decalcification of the bone tissue by electrolytic action for trouble-free and exact sectioning. Through the combination of fluid agitation & heat, this unit provides a technique of decalcifying bone in preparation for cellular staining & sectioning. Decalcification is completed in significantly reduced time as compared to a manual process, to ensure good staining characteristics. Nitric or Hydrochloric acid of not more than 5% conc.is generally used.

Basket movement is offered by an electric motor, that increases & decreases the basket and concurrently rotates it at slow speed for thorough solution action.

A Heating jacket vessel on the base of the support - stand heats the solution. The digital temperature controller with a Display is provided with a timer for accurate control of solution temperature. Supplied complete with plug & cord, the units are suitable for operation at 220 v, single phase, 50 Hz, Ac supply.

icon

Product Features

Yorco Bone Decalcifier Digital :

Efficient for use in histology for decalcification of the bone tissue by electrolytic action for trouble-free and exact sectioning. Through the combination of fluid agitation & heat, this unit provides a technique of decalcifying bone in preparation for cellular staining & sectioning. Decalcification is completed in significantly reduced time as compared to a manual process, to ensure good staining characteristics. Nitric or Hydrochloric acid of not more than 5% conc.is generally used.

Specs in Addition to YSI-111:

  • Number of programs :10
  • Programmable basket Hold Time for each stage.
  • 5.6 “Touchscreen Display.
icon

YSI 111 with Wax Bath safety control & Special Features

Wax Bath safety control:

Automatic wax Bath mainly created for PID handler and PT 100 sensors. It indicates the machine in stage nine, prior to immersion in wax and if wax is melted it by default change from stage 9 to 10 and so forth, but if wax is not melted due to some case, then machine indicate “wax not melted or temperature is not suitable“ when wax is melted /wax temperature is achieved then only the tissue basket is just to rotate or immerse in the wax bath. Thus 100% safety of precious tissues.

Yorco Automatic Tissue Processor YSI-111

  • Technical Data: The 12 stage timing sequence may be programmed for each stage for the duration between 1 minute to 9 Hrs. 59 Minute, in steps of 1 minute.
  • Delay Time: Delay time can be programmed up to 99 hours and will be sequenced with main control.
  • Basket Rotor: Slowly rotating two basket rotors are also procedure through the microprocessor.
  • Comfortable to work on 220 v, single phase, 50 Hz AC Supply.
icon

Supplied Complete With :

S.S. Tissue Capsule

2 No.

S.S. Beakers without lip

10 Nos.

Basket Rotators

2 Nos.

S.S. Wax baths

2 Nos.

Capacity

1 , 2 liter

Optional / Spare Accessories :

  • Basket Rotor which rotates the tissue basket slowly.
  • Tissue capsule Basket of S.S. with even perforation.
  • Tissue Capsule S.S. 28*28*9mm with sliding cover.
  • Tissue Capsule S.S. 20*20*10mm with sliding cover.
  • Divider for Tissue capsule ‘S’ shape.
  • Divider for Tissue capsule ’V’ shape.
  • Beaker without lip.
